astro-better-declarative-screenshots

Declarative screenshots for Astro documentation sites. You define which pages to capture and which elements to highlight directly in your MDX. A separate CLI generates the PNG files using Playwright and Docker. Your docs build just renders the committed PNGs as <img> tags.

Two packages

astro-better-declarative-screenshots — Astro components for your docs site. Reads committed PNGs at build time and renders them as <img> tags. No Playwright, no Docker, no heavy dependencies.

Current version: 0.4.1 --npm

generate-declarative-screenshots — CLI that generates the PNGs. Starts Docker, captures pages with Playwright WebKit, injects highlights, and writes PNGs to your output directory.

Current version: 0.4.2 --npm

The split keeps Playwright’s ~250 MB browser binaries out of your docs build. Regular builds stay fast; generation runs on a schedule, on demand, or only when content changes.

Installation

$ npm install astro-better-declarative-screenshots

$ mkdir screenshots && cd screenshots
$ npm init -y
$ npm install generate-declarative-screenshots
$ npx playwright install --with-deps webkit

{
  "scripts": {
    "screenshots": "screenshots/node_modules/.bin/take-screenshots",
    "check-screenshots": "screenshots/node_modules/.bin/check-screenshots"
  }
}

Docker setup

The generator starts a Docker container of your site before capturing pages. For bss-docs — a static Astro site — the simplest approach is to build first, then serve the dist/ directory with a lightweight static file server.

screenshots/docker-compose.yml

services:
  bss-docs:
    image: node:20-alpine
    working_dir: /app
    volumes:
      - ../dist:/app/dist:ro
    command: npx --yes serve dist -l 4000 --no-clipboard
    ports:
      - "4000:4000"
    healthcheck:
      test: ["CMD", "wget", "-qO-", "http://localhost:4000/docs"]
      interval: 3s
      timeout: 5s
      retries: 30

Add the build step to the screenshots script so one command does everything:

package.json

{
  "scripts": {
    "screenshots": "npm run build && screenshots/node_modules/.bin/take-screenshots"
  }
}

Then just:

$ npm run screenshots

Configuration

Create screenshot.config.mjs at the project root:

screenshot.config.mjs

export default {
  baseUrl: 'http://localhost:4000',
  outputDir: 'public/img/screenshots',

  window: { width: 1200, height: 800 },

  chrome: {
    style:    'golden-gate',
    renderIn: 'css',
    showUrl:  true,
    theme:    'light',
    // replace localhost:4000 with the real domain in the URL bar
    baseUrl:  'https://better-static-sites.github.io',
  },

  docker: {
    compose: 'screenshots/docker-compose.yml',
    service: 'bss-docs',
    healthcheck: {
      url:      'http://localhost:4000/docs',
      timeout:  60000,
      interval: 3000,
    },
  },
};

The chrome.baseUrl substitution makes the URL bar show better-static-sites.github.io/docs/... instead of localhost:4000/docs/... in the rendered screenshot.

Declaring screenshots in MDX

Import the components at the top of any .mdx file:

import Screenshot from 'astro-better-declarative-screenshots/Screenshot.astro';
import Highlight from 'astro-better-declarative-screenshots/Highlight.astro';

Basic screenshot

Place the Screenshot component where the image should appear:

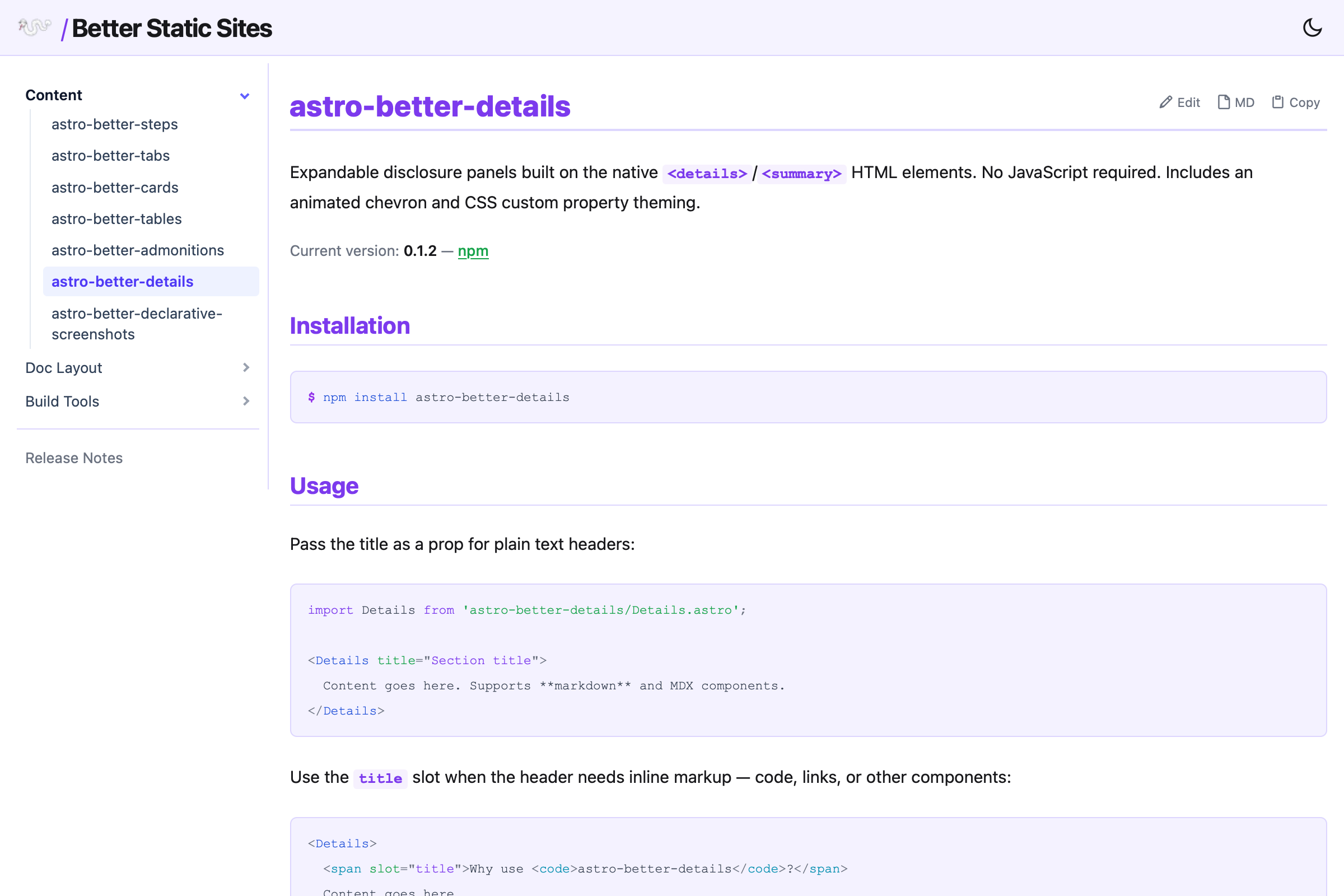

<Screenshot
  url="/docs/ui/details"
  alt="The Details component documentation page."
/>

/docs/ui/details

Full-page capture

Capture the full scrollable height of a page with fullPage:

<Screenshot
  url="/docs/build-tools/code-blocks"
  alt="The code blocks documentation page showing all meta string features."
  fullPage={true}
/>

/docs/build-tools/code-blocks

Highlight an element

Nest a Highlight component inside Screenshot to call out a specific element. The highlight is injected onto the live page before the screenshot is taken.

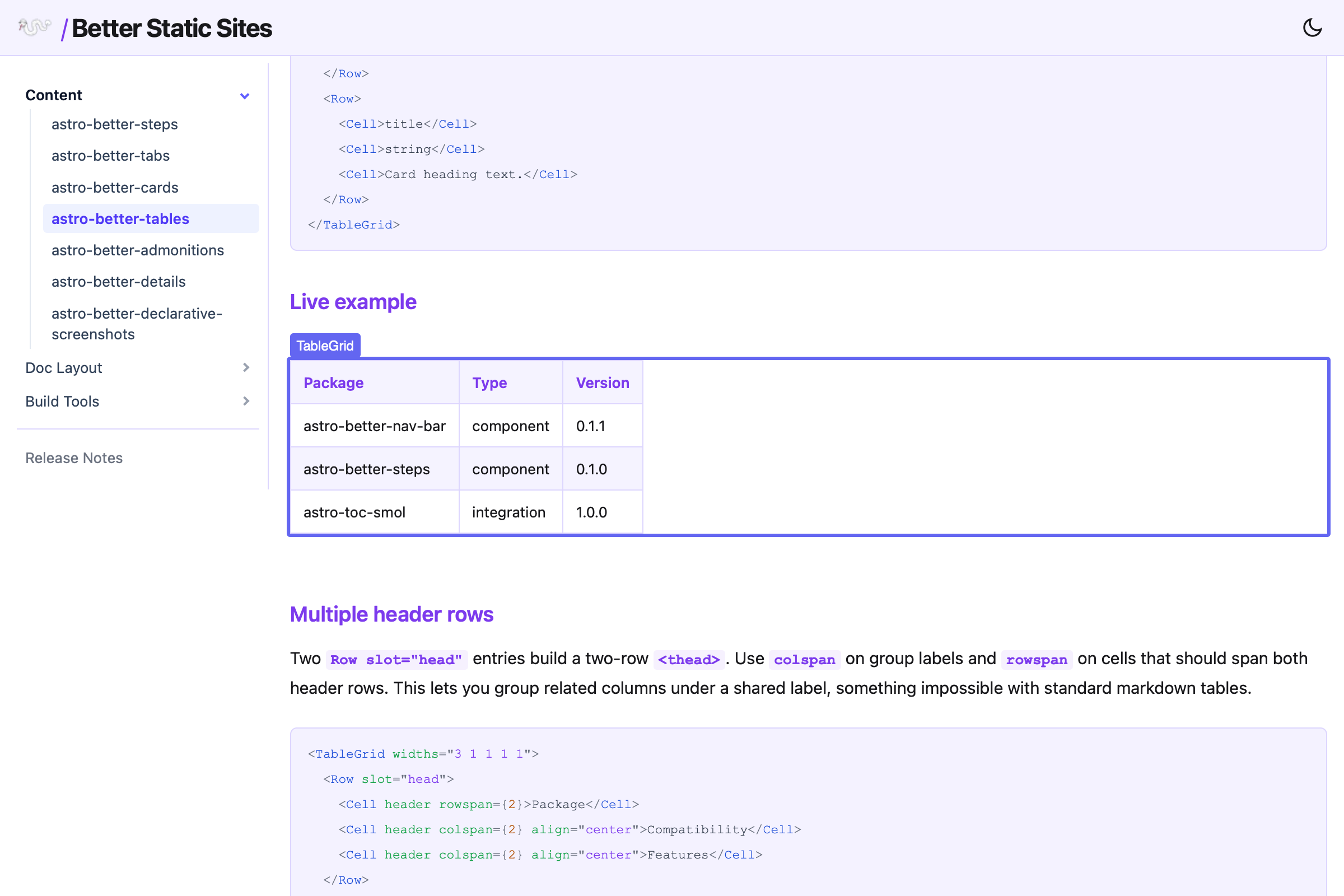

<Screenshot
  url="/docs/ui/tables"
  alt="The tables page with the TableGrid live example highlighted."
>
  <Highlight
    selector=".abt-grid-table"
    label="TableGrid"
    color="#6366f1"
  />
</Screenshot>

/docs/ui/tables

Arrow style

Use style="arrow" to point at an element instead of boxing it:

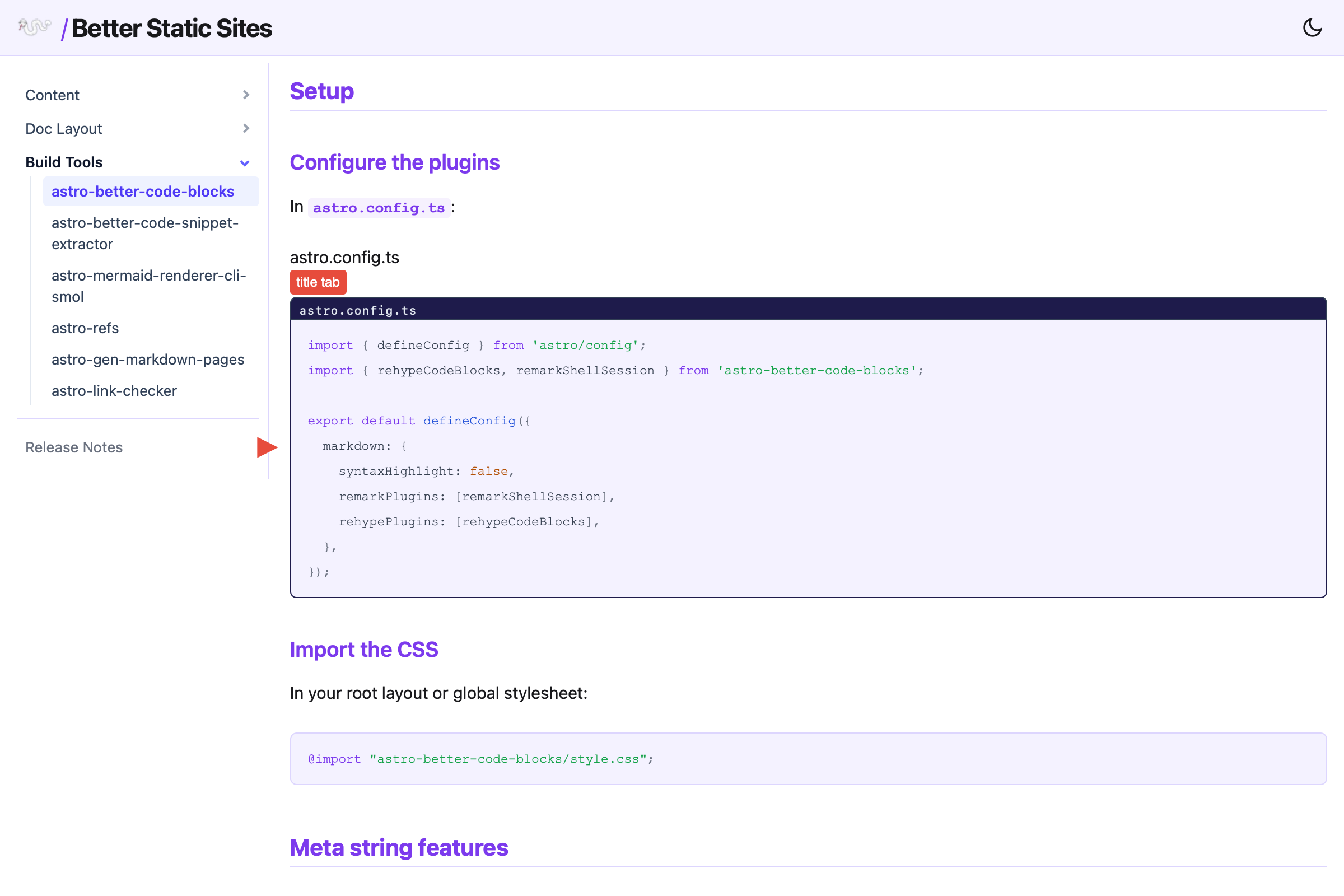

<Screenshot
  url="/docs/build-tools/code-blocks"
  alt="The code blocks page with the diff example called out."
>
  <Highlight
    selector=".code-figure"
    style="arrow"
    label="title tab"
    color="#e74c3c"
  />
</Screenshot>

/docs/build-tools/code-blocks

Multiple highlights

Chain multiple <Highlight> children to annotate several elements at once:

<Screenshot
  url="/docs/ui/tables"
  alt="The tables page with both complex TableGrid examples annotated."
  fullPage={true}
>
  <Highlight selector=".abt-grid-table:first-of-type" label="basic" />
  <Highlight selector=".abt-grid-table:last-of-type" label="rowspan" color="#059669" />
</Screenshot>

/docs/ui/tables

Generating screenshots

From the project root:

$ npm run screenshots

The script builds the site first, then starts Docker, waits for the health check to pass, captures every <Screenshot> found in your source, and writes PNGs to outputDir.

To regenerate only screenshots whose name or URL contains a given string:

$ npm run screenshots -- --filter tables

Commit the generated PNGs alongside your source. Subsequent docs builds read them from disk — no Playwright or Docker involved.

CI: checking for drift

check-screenshots recaptures all screenshots and diffs them against the committed references. Use it in a scheduled CI job to catch visual regressions.

$ npm run check-screenshots -- --threshold 0.002 --diff-dir .screenshot-diffs

• --threshold — fraction of pixels that may differ before failure (default 0.001)
• --diff-dir — where to write diff images (default .screenshot-diffs)
• --fail-on-missing — exit non-zero if any reference PNG is missing
• --filter — check only screenshots whose name or URL matches this string

Automated weekly refresh

The recommended pattern: a scheduled GitHub Action builds the site, runs the generator, and opens a PR if any PNGs changed. This separates “something drifted” from “the drift was intentional.”

.github/workflows/update-screenshots.yml

name: Update screenshots

on:
  schedule:
    - cron: '0 8 * * 1'  # every Monday
  workflow_dispatch:

permissions:
  contents: write
  pull-requests: write

jobs:
  update:
    runs-on: ubuntu-latest
    steps:
      - uses: actions/checkout@v4

      - uses: actions/setup-node@v4
        with:
          node-version-file: .nvmrc
          cache: npm
          cache-dependency-path: |
            package-lock.json
            screenshots/package-lock.json

      - name: Install site modules
        run: npm ci

      - name: Build site
        run: npm run build

      - name: Install screenshots CLI
        run: npm ci
        working-directory: ./screenshots

      - name: Install Playwright webkit
        run: npx playwright install webkit --with-deps
        working-directory: ./screenshots

      - name: Delete cached screenshots
        run: rm -f public/img/screenshots/*.png

      - name: Generate screenshots
        run: npm run screenshots

      - name: Check for changes and open PR
        env:
          GH_TOKEN: ${{ secrets.GITHUB_TOKEN }}
        run: |
          git add public/img/screenshots/
          if git diff --cached --quiet; then
            echo "All screenshots match -- no PR needed."
          else
            BRANCH="screenshots/auto-update-$(date +%Y-%m-%d)"
            git config user.name  "github-actions[bot]"
            git config user.email "github-actions[bot]@users.noreply.github.com"
            git checkout -b "$BRANCH"
            git commit -m "chore: update screenshots $(date +%Y-%m-%d)"
            git push origin "$BRANCH"
            gh pr create --title "chore: update screenshots $(date +%Y-%m-%d)" \
              --body "Weekly automated screenshot refresh. Review the diff before merging." \
              --label "screenshots" --base main
          fi

Screenshot props

Filenames are derived from the URL path and highlight selectors. /docs/ui/tables with a .abt-grid-table highlight becomes docs-ui-tables-abt-grid-table.png. Pass an explicit id when the same URL appears more than once on a page.

Highlight props

Elements with zero dimensions (hidden inputs, display:none elements) are skipped automatically.

Window chrome styles

The chrome.style option in screenshot.config.mjs controls the window frame rendered around each screenshot. All styles support theme: 'light' and theme: 'dark'.

Strict mode

By default, <Screenshot> renders a placeholder when the PNG is missing. Set strict: true in screenshot.config.mjs or SCREENSHOTS_STRICT=true in your environment to throw at build time instead. This is useful in CI to catch references to PNGs that were never generated.
